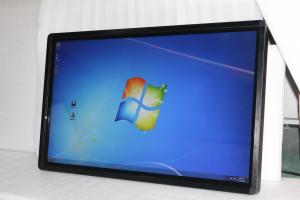

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

  • 1
  • 2
  • 3

Brand Name : ZXTLCD

Model Number : ZXT-WP320A

Certification : CE/Rohs/FCC/ERP Energy Label

Place of Origin : China

MOQ : 1 Piece

Price : Negotiate

Payment Terms : T/T,Western Union, Alibaba trade assurance

Supply Ability : 5,000 pcs per month

Delivery Time : 5-7 working days

Packaging Details : wooden case, carton, flight case are option

Screen Sizes : 19'' to 84''

Installation : Wall Mount

Touch Screen : Infrared Touch

PC Build-In : OPS

Application : Indoor

Warranty : 1 Year

Contact Now

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Main featurers:
1. Long lasting product cycle-enclosure controlled by ZXT specifications
2. Future generation panels phased-in without external changes
3. High quality panel with high brightness, high contrast ratio and broad viewing angle
4. Multiple mounting options including VESA mount,horizontal or vertical bracket-mount
5. Freedom of the USB driver are available
6. Finger or gloved hand operation
7. USB touch interface port
8. Worldwide agency approvals ,such as ETL,FCC,CE, RoHs etc.

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Screen Sizes:

Model No. Size Ratio Resolution Brightness Contrast Display Area(mm) Product Size/Weight
L*W*H(mm)
ZXT-WP190A 19 16:10 1440*900 250cd/m2 800:01:00 409*256 560*340*38/9.5
ZXT-WP220A 22 16:10 1680*1050 300cd/m2 800:01:00 473*296 630*370*38/11.5
ZXT-WP320A 32 16:09 1366*768 / 1920*1080 360cd/m2 1400:01:00 698*392 810×500×40/21
ZXT-WP430A 43 16:09 1920*1080 360cd/m2 2000:01:00 934*523 1026×620×42/26
ZXT-WP490A 49 16:09 1920*1080 450cd/m2 3000:01:00 1025*577 1158*722*65/38
ZXT-WP550A 55 16:09 1920*1080 450cd/m2 4000:01:00 1214*680 1330×790×45/45
ZXT-WP650A 65 16:09 1920*1080 500cd/m2 4000:01:00 1435*808 1540*985*70
ZXT-WP700A 70 16:09 1920*1080 500cd/m2 4000:01:00
ZXT-WP820A 82 16:09 1920*1080 500cd/m2 4000:01:00 1806*1016
Mount Wall Mount (VESA)
Control Mode Dual Touch IR Touch Screen (Optional 4, 6, 10, 16, 32 Point Touch)
Video Interface VGA / DVI / HDMI
Speaker 2x 2W 8Ohms Amplified Spearkers Built In
Accessory Wall Mount Brackets, Power Supper & Cord, Remote Controller

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Infrared Touch Screen Specifications

Resolution 4096*4096
Response Time 8MS-15MS
Linar Error 1.5mm
Input Method Finger or other opacity touch medium
Touch Times Unlimited
Touch Pressure Capturing Touch Gesture through Infrared Light Technology, No Need Pressure,
Minimum Touch Diameter 5mm
Transmittance 92%; 100% at max (w/O glass)
Anti Dazzle Light Anti Dazzle Sunlight for Indoor & Outdoor (optional)
Work Voltage Typical +5V DC, +4.75 to +5.25V Allowed
Power Supply Mode USB Interface or PS/2, Power supply Ripple 200mVrms at Max
Power < 2W, DC 5V via USB; Electric Current <240MA
Interface RS232, USB (Plug & Play, Free Driver), USB Transmission Distance 25Meters at Max
Compatible OS WINDOW2000/2003/XP/LINUX/CE/MAC/WIN7/WIN8/Android
Work Temperature -20℃ --- 70℃
Storage Temperature -40℃ --- 80℃
Work Humdity 90%RH, No Condensing at +40 centigrade

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Features of Infrared Touch Screen

1. Double-point write with peace,precise multi-point touching.

2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.

3. Longevity of service ,maintenance free.

4. Aluminum alloy shell with strong stability.

5. Tempered glass with high light transmittance and true color rendition.

6. Without driver ,supporting plug and play.

7. Adapt to internal and external linked environment.

8. No touching tools,no special touching pen is required ,only your finger.

9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other undesirable phenomena.

10. Compatible with multiple systems, support TUIO enables multi-touch in windows7/8

Common Computer configurations selections:

Level CPU RAM Integrated Video Graphics
A Intel 1037U 2G DD3 Intel HD Graphics Integrated
B Option Interated I3 DDR3/4GB Intel HD Graphics 4400
C Option Interated I5 DDR34GB Intel HD Graphics 4400
D Option Interated I7 DDR3/4GB Intel HD Graphics 5000
E Option Discrete I3 DDR3/4GB GT730 2G(other) 2gb Discrete
F Option Discrete I5 DDR3/8GB GT730 2G(other)
G Option Discrete I7 DDR3/8GB GT730 2G(other)

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Products application:

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Packing:

19 Inch To 98 Inch Computer Multi Touchscreen , Indoor All In One Pc Interactive Display Screen

Important details for you to helping reference.


1. Which size are you interested? We have 15 17 19 22 26 32 43 49 55 65 70 72 82 84 98 inch for Wall mount.
2. We have three functions: Which functions do you need?
a, Simple version with USB only(Monitor display for Ad player)
b, Android wifi 3g network with remote control
c, Built-in pc system; (OS support: Win7/8/10/xp/Linux)
3. Which screen do you like? We have touch screen(IR touch&Nano touch 6points) and without touch screen.
4. How many pcs do you need?For quantity, we can give some discount.
